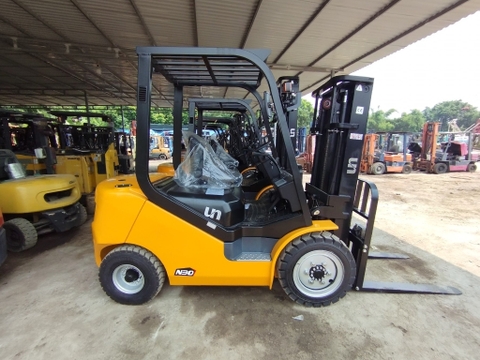

Xe nâng dầu 2.5 tấn

Thương hiệu: UN Mã sản phẩm: (Đang cập nhật...)
Còn hàng
Liên hệ
Gọi +84983070199 để tư vấn mua hàng

Thông số kỹ thuật xe nâng đầu từ 1,5/2/2.5/3/3.5 tấn Trung quốc

General

1

Manufacturer



UN

2

Model



FD15T

FD18T

FD20T

FD25T

FD30T

FD35T

3

Power Type



Diesel

Diesel

Diesel

Diesel

Diesel

Diesel

4

Rated Load Capacity

Q(kg)

1500

1800

2000

2500

3000

3500

5

Load Centre

C(mm)

500

500

500

500

500

500

Characteristic & Dimension

6

Rated Lift Height

H3(mm)

3000

3000

3000

3000

3000

3000

7

Free Lift Height

H2(mm)

100

100

100

100

100

100

8

Fork Size (LxWxT)

mm

920x120x35

920x120x35

1070x120x40

1070*120*40

1070x125x45

1070x125x45

9

Mast Tilt Angle (F/R, a°/β°)

deg

6°/12°

6°/12°

6°/12°

6°/12°

6°/12°

6°/12°

10

Fork Overhang (Wheel Center to Fork Face)

X1(mm)

409

409

479

479

484

484

11

Rear Overhang

X2(mm)

470

470

520

520

595

635

12

Ground Clearance (Bottom of Mast)

H7(mm)

110

110

130

130

145

145

13

Length to Face of Fork (Without Fork)

L1(mm)

2285

2285

2660

2660

2700

2775

14

Overall Width

B1(mm)

1082

1082

1150

1150

1225

1225

15

Mast Lowered Height

H1(mm)

2025

2025

2055

2055

2070

2070

16

Mast Extended Height (With Backrest)

H4(mm)

4055

4055

4070

4070

4070

4070

17

Overhead Guard Height

H5(mm)

2160

2160

2215

2215

2235

2235

18

Turning Radius (Outside)

Wa(mm)

2100

2100

2365

2365

2425

2500

19

Min Aisle width for pallets

mm

3700

3700

4120

4120

4180

4255

Performance

20

Travel Speed (No Load)

km/h

14.5

14.5

19

19

19

19

21

Lifting Speed (Full Load)

mm/sec

560

560

510

510

430

400

22

Lowering Speed (Full Load)

mm/sec

450

450

450

450

450

450

23

Max.Drawbar Pull (Full Load/No Load)

KN

17(14.5)

17(14.5)

17(14.5)

17(14.5)

16(15.7)

16(15.7)

24

Max.Gradeability (Full Load)

%

20

20

20

20

20

20

Tyre

25

Tyre (Front x 2)

mm

6.50-10-10PR

6.50-10-10PR

7.00-12-12PR

7.00-12-12PR

28x9-15-12PR

28x9-15-12PR

26

Tyre (Rear x 2)

mm

5.00-8-10PR

5.00-8-10PR

6.00-9-10PR

6.00-9-10PR

6.50-10-10PR

6.50-10-10PR

Weight

27

Total Weight

kg

2860

2990

3385

3605

4460

4775

28

Front Axle Weight Distribution (Full Load)

kg

3815

4120

4846

5494

6714

6997

29

Rear Axle Weight Distribution (Full Load)

kg

545

720

538

610

746

777

30

Front Axle Weight Distribution (No Load)

kg

1200

1170

1354

1442

1784

1910

31

Rear Axle Weight Distribution (No Load)

kg

1660

1820

2031

2163

2676

2865

Power & Transmission

32

Battery

V/Ah

12/90

12/90

12/90

12/90

12/90

12/90

33

Fuel Tank Capacity

L

50

50

50

50

50

50

34

Operating Pressure (For Attachments)

Mpa

14.5

14.5

17.5

17.5

17.5

17.5

Xem thêm Thu gọn
