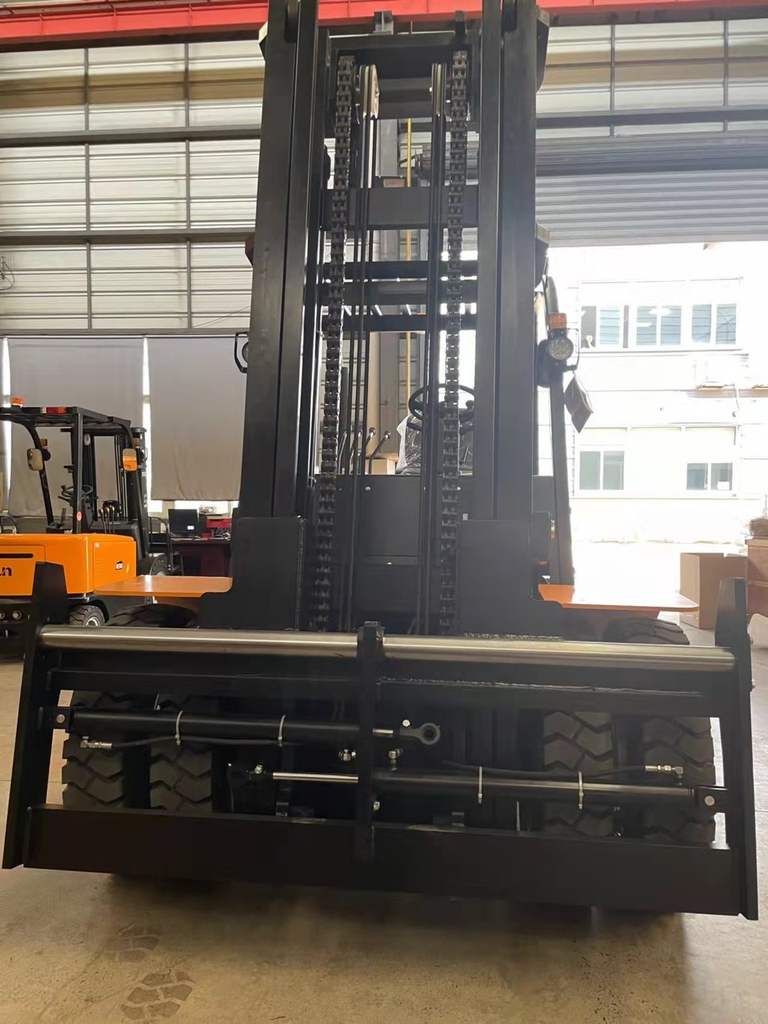

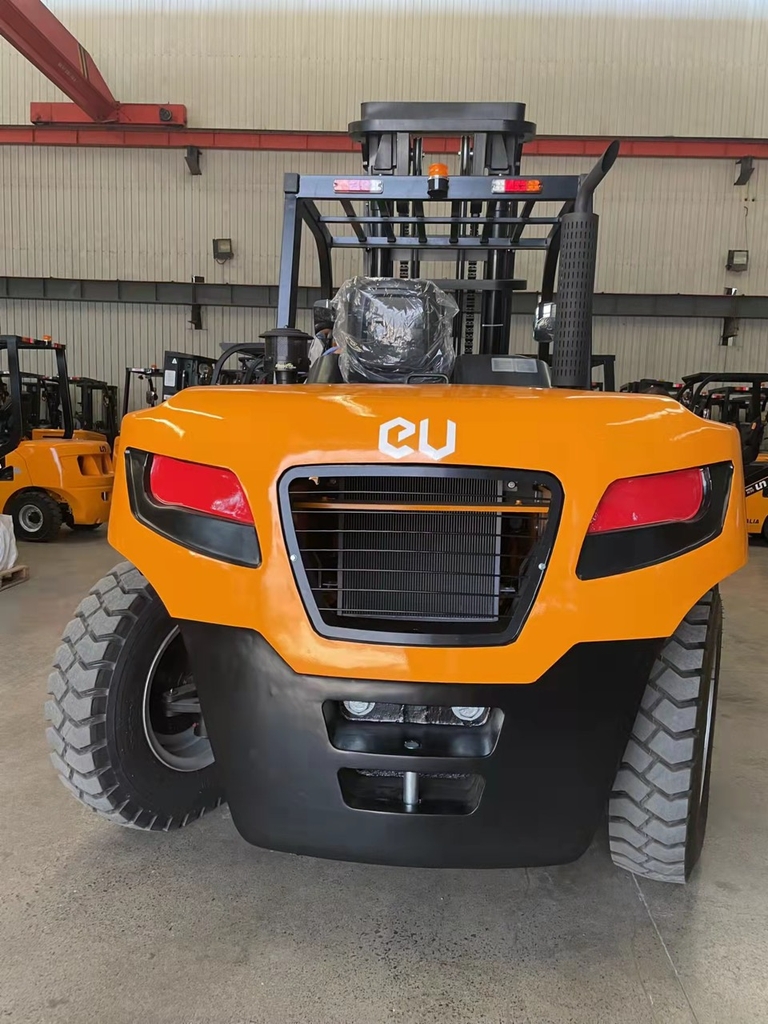

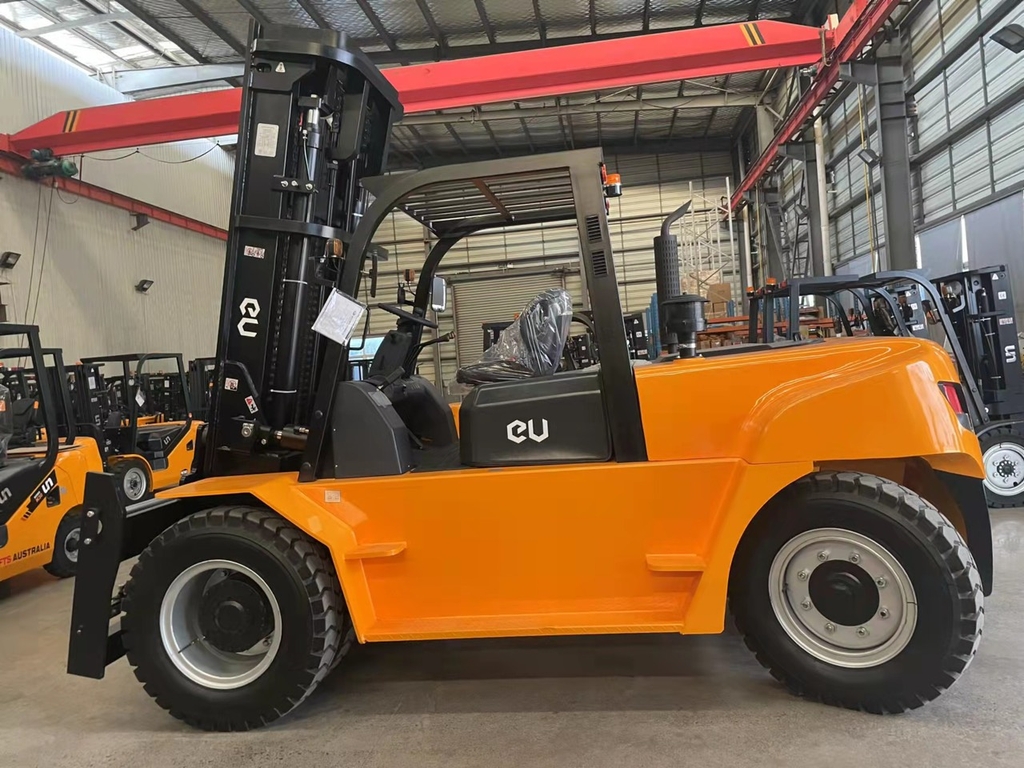

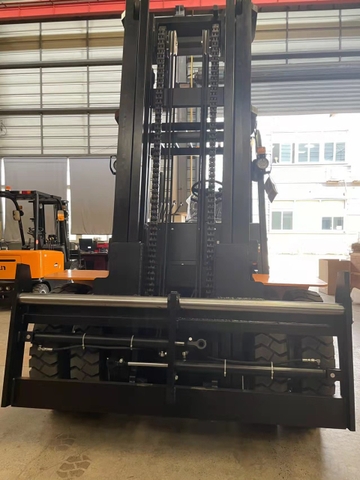

Xe nâng dầu UN Series FD50T, FD60T, FD70T, FD80T, FD100T
Thương hiệu: Công ty TNHH thiết bị Minh Anh
Mã sản phẩm: (Đang cập nhật...)
Còn hàng
Liên hệ
- Chi tiết
- Hướng dẫn
- Đánh giá
MAIN SPECIFICATIONS
|
General |
1 |
Manufacturer |
|
UN |
||||
|
2 |
Model |
|
FD50T |
FD60T |
FD70T |
FD80T |
FD100T |
|
|
3 |
Power Type |
|
Diesel |
|||||
|
4 |
Rated load Capacity |
Q(kg) |
5000 |
6000 |
7000 |
8000 |
10000 |
|
|
5 |
Load Centre |
C(mm) |
600 |
|||||
|
Characteristic & Dimension |
6 |
Rated Lift Height |
H3(mm) |
3000 |
||||
|
7 |
Free Lift Height |
H2(mm) |
152 |
152 |
152 |
120 |
120 |
|
|
8 |
Fork Size (L*W*T) |
mm |
1220x150x60 |
1220x150x60 |
1220x150x65 |
1220x175x75 |
1220x175x80 |
|
|
9 |
Mast Tilt Angle (F/R, α°/β°) |
deg |
6°/12° |
|||||
|
10 |
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
585 |
585 |
585 |
721 |
721 |
|
|
11 |
Rear Overhang |
X2(mm) |
640 |
640 |
720 |
760 |
760 |
|
|
12 |
Ground Clearance (Bottom of Mast) |
H7(mm) |
200 |
200 |
200 |
250 |
250 |
|
|
13 |
Length to Face of Fork (Without Fork) |
L1(mm) |
3510 |
3510 |
3590 |
4040 |
4270 |
|
|
14 |
Overall Width |
B1(mm) |
1996 |
1995 |
1996 |
2165 |
2166 |
|
|
15 |
Mast Lowered Height |
H1(mm) |
2515 |
2515 |
2615 |
2695 |
2845 |
|
|
16 |
Mast Extended Height (With Backrest） |
H4(mm) |
4437 |
4437 |
4437 |
4020 |
4260 |
|
| Performance |
17 |
Overhead Guard Height |
H5(mm) |
2445 |
2445 |
2445 |
2520 |
2540 |
|
18 |
Turning Radius （Outside） |
Wa(mm) |
3260 |
3280 |
3340 |
3700 |
4100 |
|
|
19 |
Min.Aisle width for pallets |
Asl(mm) |
5285 |
5285 |
5365 |
5645 |
6045 |
|
|
20 |
Travel Speed (No Load) |
km/h |
23/21 |
23/21 |
23/21 |
21/18 |
19/16 |
|
|
21 |
Lifting Speed (No Load/Full Load) |
mm/sec |
530/500 |
530/500 |
530/490 |
400/360 |
380/328 |
|
|
22 |
Lowering Speed (No Load/Full Load) |
mm/sec |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
≥300/≤600 |
|
|
23 |
Max.Drawbar Pull (Full Load) |
KN |
53 |
53 |
52 |
58 |
57 |
|
|
24 |
Max.Gradeability(Full Load) |
% |
32 |
27 |
24 |
20 |
20 |
|
| Chassis |
25 |
Tyre (Front x 4) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
|
26 |
Tyre (Rear x 2) |
mm |
8.25-15-14PR |
8.25-15-14PR |
8.25-15-14PR |
8.25-20-14PR |
9.00-20-14PR |
|
|
27 |
Front Tread |
mm |
1470 |
1470 |
1470 |
1600 |
1600 |
|
|
28 |
Rear Tread |
mm |
1700 |
1700 |
1700 |
1700 |
1700 |
|
|
29 |
Wheelbase |
Y(mm) |
2250 |
2250 |
2250 |
2500 |
2800 |
|
| Weight |
30 |
Total Weight |
|
7980 |
8640 |
9350 |
11850 |
12900 |
|
31 |
Front Axle Weight Distribution (Full Load) |
|
11660 |
13050 |
14570 |
17800 |
20610 |
|
|
32 |
Rear Axle Weight Distibution (Full Load) |
|
1320 |
1590 |
1780 |
2050 |
2290 |
|
|
33 |
Front Axle Distribution (No Load) |
kg |
4010 |
3860 |
3860 |
4740 |
5660 |
|
|
34 |
Rear Axle Weight Distribution (No Load) |
|
3970 |
4760 |
5490 |
7110 |
8240 |
|
| Power &Transmission |
35 |
Battery |
V/Ah |
24/90 |
||||
|
36 |
Fuel Tank Capacity |
L |
120 |
|||||
|
37 |
Transmission Type |
|
Powershift |
|||||
|
38 |
Transmission Stage (FWD、RVS) |
|
2/2 |
|||||
|
39 |
Operating Pressure (For Attachments) |
Mpa |
20 |
|||||
