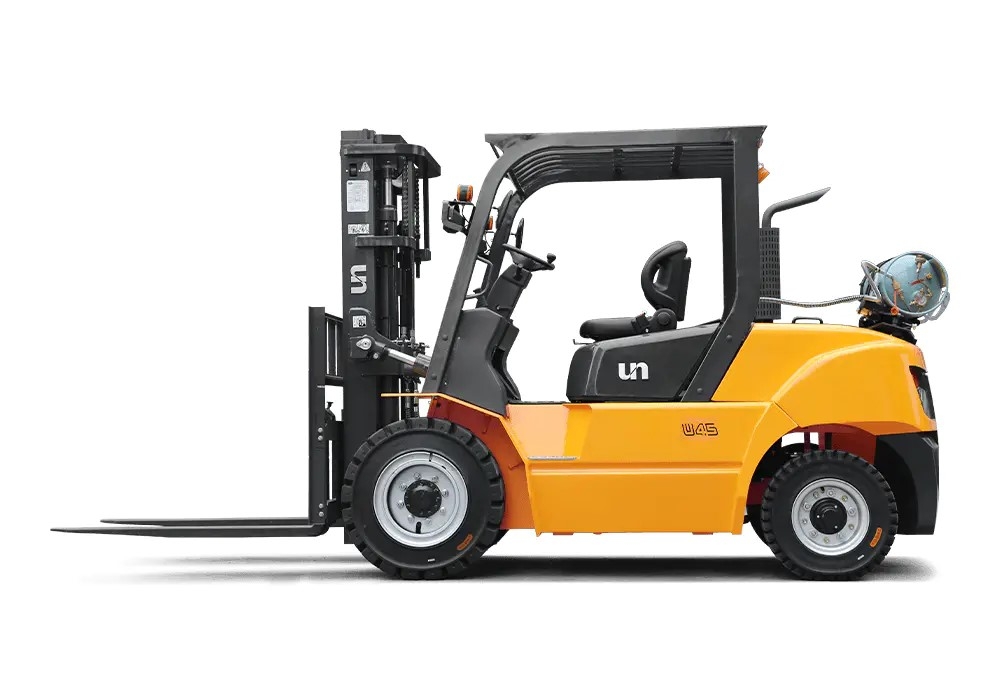

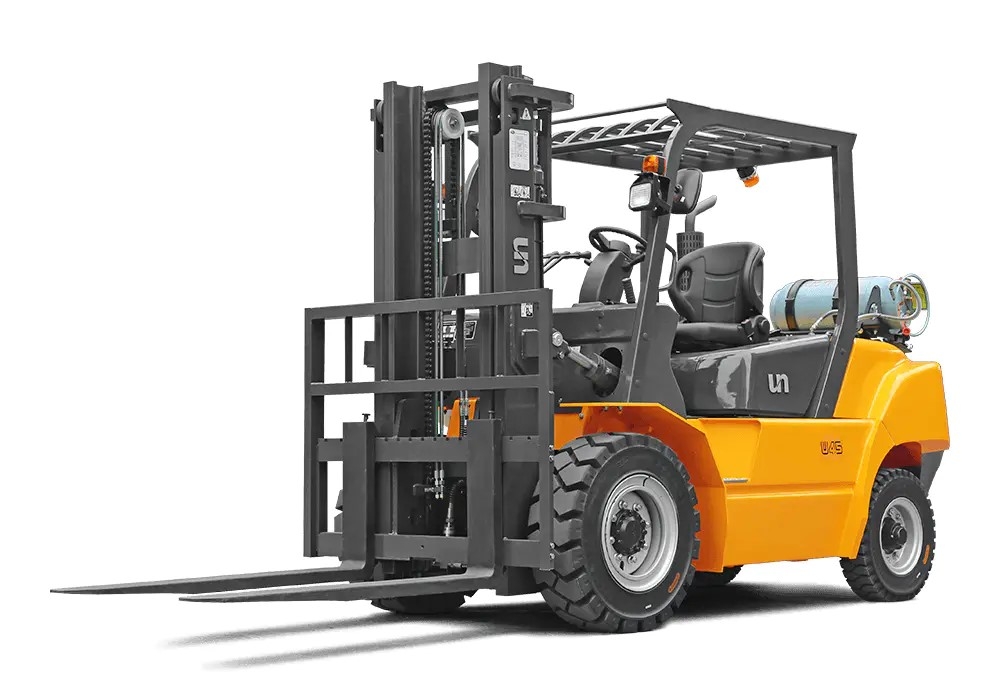

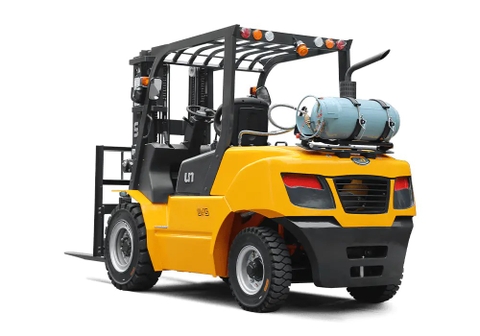

Xe nâng Gasoline & LPG Series FGL40T, FGL45T, FGL50T

Xe nâng Gasoline & LPG Series FGL40T, FGL45T, FGL50T

Thương hiệu: Công ty TNHH thiết bị Minh Anh Mã sản phẩm: (Đang cập nhật...)

Liên hệ

Chi tiết
Hướng dẫn
Đánh giá

General	1	Manufacturer		UN
	2	Model		FGL40T	FGL45T	FGL50T
	3	Power Type		LPG
	4	Rated Load Capacity	Q(kg)	4000	4500	5000
	5	Load Centre	C(mm)	500
Characteristic & Dimension	6	Rated Lift Height	H3(mm)	3000
	7	Free Lift Height	H2(mm)	84
	8	Fork Size (L×W×T)	mm	1070×150×50
	9	Mast Tilt Angle (F/R, α°/β°)	deg	6°/12°
	10	Fork Overhang (Wheel Center to Fork Face)	X1(mm)	578
	11	Rear Overhang	X2(mm)	550	570	614
	12	Ground Clearance (Bottom of Mast)	H7(mm)	175
	13	Length to Face of Fork (Without Fork)	L1(mm)	3091		3125
	14	Overall Width	B1(mm)	1485
	15	Mast Lowered Height	H1(mm)	2260
	16	Mast Extended Height (With Backrest)	H4(mm)	4266
	17	Overhead Guard Height	H5(mm)	2260
	18	Turning Radius (Outside)	Wa(mm)	2790		2830
	19	Min.Aisle width for pallets	Ast(mm)	4640		4680
Performance	20	Travel Speed (No Load)	km/h	22/20
	21	Lifting Speed (No Load/Full Load)	mm/sec	450		430
	22	Lowering Speed (No Load/Full Load)	mm/sec	480
	23	Max.Drawbar Pull (Full Load)	KN	>21
	24	Max.Gradeability (Full Load)	%	≥20%
Chassis	25	Tyre (Front x 2)	mm	300-15-18PR
	26	Tyre (Rear x 2)	mm	7.00-12-12PR
	27	Front Tread	B2(mm)	1180
	28	Rear Tread	B3(mm)	1190
	29	Wheelbase	Y(mm)	2000
Weight	30	Total Weight	kg	6600	6800	7100
	31	Front Axle Weight Distribution (Full Load)	kg	9010	9750	10500
	32	Rear Axle Weight Distribution (Full Load)	kg	1590	1550	1600
	33	Front Axle Weight Distribution (No Load)	kg	2750	2710	2680
	34	Rear Axle Weight Distribution (No Load)	kg	3850	4090	4420
Power & Transmission	35	Battery	V/Ah	24/80
	36	Engine Model		PSI4.3
	37	Engine Manufacturer		PSI
	38	Rated Output / r.p.m.	kw	63/2000
	39	Rated Torque / r.p.m.	N·m	298/1200
	40	No.of Cylinder		6
	41	Bore x Stroke	mm	101.6×88.4
	42	Displacement	L	4.294
	43	Fuel Tank Capacity	L	90
	44	Transmission Type		Powershift
	45	Transmission Stage (FWD/RVS)		2/1
	46	Operating Pressure (For Attachments)	Mpa	17
