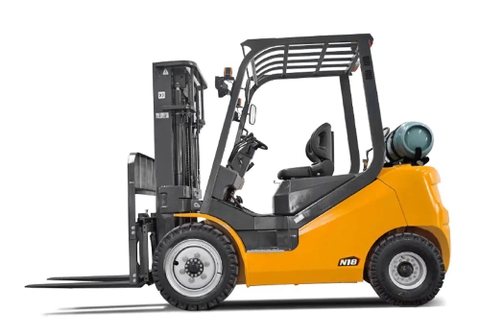

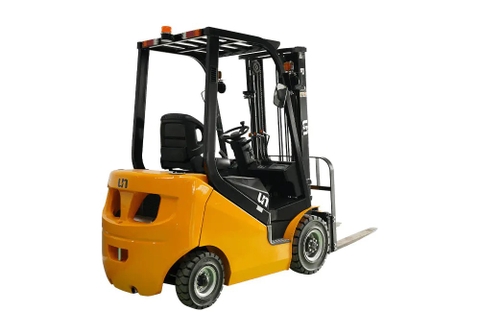

XE nâng Gasoline & LPG từ 1.5T - 3.5T
Thương hiệu: Công ty TNHH thiết bị Minh Anh
Mã sản phẩm: (Đang cập nhật...)
Còn hàng
Liên hệ
- Chi tiết
- Hướng dẫn
- Đánh giá
Gasoline & LPG Forklift 1.5T - 3.5T Main Specifications
| General |
1 |
Manufacturer |
|
UN |
|||||
|
2 |
Model |
|
FG15T FGL15T |
FG18T FGL18T |
FG20T FGL20T |
FG25T FGL25T |
FG30T FGL30T |
FG35T FGL35T |
|
|
3 |
Power Type |
|
LPG |
LPG |
LPG |
LPG |
LPG |
LPG |
|
|
4 |
Rated Load Capacity |
Q(kg) |
1500 |
1800 |
2000 |
2500 |
3000 |
3500 |
|
|
5 |
Load Centre |
C(mm) |
500 |
500 |
500 |
500 |
500 |
500 |
|
| Characteristic & Dimension |
6 |
Rated Lift Height |
H3(mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
7 |
Free Lift Height |
H2(mm) |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
8 |
Fork Size (LxWxT) |
mm |
920x120x35 |
920x120x35 |
1070x120x40 |
1070x120x40 |
1070x125x45 |
1070x125x50 |
|
|
9 |
Mast Tilt Angle (F/R, a°/β°) |
deg |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
6°/12° |
|
|
10 |
Fork Overhang (Wheel Center to Fork Face) |
X1(mm) |
409 |
409 |
479 |
479 |
484 |
484 |
|
|
11 |
Rear Overhang |
X2(mm) |
470 |
470 |
520 |
520 |
595 |
635 |
|
|
12 |
Ground Clearance (Bottom of Mast) |
H7(mm) |
110 |
110 |
130 |
130 |
145 |
145 |
|
|
13 |
Length to Face of Fork (Without Fork) |
L1(mm) |
2285 |
2285 |
2660 |
2660 |
2700 |
2775 |
|
|
14 |
Overall Width |
B1(mm) |
1082 |
1082 |
1150 |
1150 |
1225 |
1225 |
|
|
15 |
Mast Lowered Height |
H1(mm) |
2025 |
2025 |
2055 |
2055 |
2070 |
2070 |
|
|
16 |
Mast Extended Height (With Backrest) |
H4(mm) |
4055 |
4055 |
4070 |
4070 |
4070 |
4070 |
|
|
17 |
Overhead Guard Height |
H5(mm) |
2160 |
2160 |
2215 |
2215 |
2235 |
2235 |
|
|
18 |
Turning Radius (Outside) |
Wa(mm) |
2100 |
2100 |
2365 |
2365 |
2425 |
2500 |
|
|
19 |
Min.Aisle width for pallets |
mm |
3700 |
3700 |
4120 |
4120 |
4180 |
4255 |
|
| Performance |
20 |
Travel Speed (No Load) |
km/h |
14.5 |
14.5 |
19 |
19 |
19 |
19 |
|
21 |
Lifting Speed (Full Load) |
mm/sec |
560 |
560 |
510 |
510 |
430 |
400 |
|
|
22 |
Lowering Speed (Full Load) |
mm/sec |
450 |
450 |
450 |
450 |
450 |
450 |
|
|
23 |
Max.Drawbar Pull (Full Load/No Load) |
KN |
17(14.5) |
17(14.5) |
17(14.5) |
17(14.5) |
16(15.7) |
16(15.7) |
|
|
24 |
Max.Gradeability (Full Load) |
% |
20 |
20 |
20 |
20 |
20 |
20 |
|
| Tyre |
25 |
Tyre (Front x 2) |
mm |
6.50-10-10PR |
6.50-10-10PR |
7.00-12-12PR |
7.00-12-12PR |
28x9-15-12PR |
28x9-15-12PR |
|
26 |
Tyre (Rear x 2) |
mm |
5.00-8-10PR |
5.00-8-10PR |
6.00-9-10PR |
6.00-9-10PR |
6.50-10-10PR |
6.50-10-10PR |
|
| Weight |
27 |
Total Weight |
kg |
2860 |
2990 |
3385 |
3605 |
4460 |
4775 |
|
28 |
Front Axle Weight Distribution (Full Load) |
kg |
3815 |
4120 |
4846 |
5494 |
6714 |
6997 |
|
|
29 |
Rear Axle Weight Distribution (Full Load) |
kg |
545 |
720 |
538 |
610 |
746 |
777 |
|
|
30 |
Front Axle Weight Distribution (No Load) |
kg |
1200 |
1170 |
1354 |
1442 |
1784 |
1910 |
|
|
31 |
Rear Axle Weight Distribution (No Load) |
kg |
1660 |
1820 |
2031 |
2163 |
2676 |
2865 |
|
| Power & Transmission |
32 |
Battery |
V/Ah |
12/90 |
12/90 |
12/90 |
12/90 |
12/90 |
12/90 |
|
33 |
Fuel Tank Capacity |
L |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
34 |
Operating Pressure (For Attachments) |
Mpa |
14.5 |
14.5 |
17.5 |
17.5 |
17.5 |
17.5 |
|
